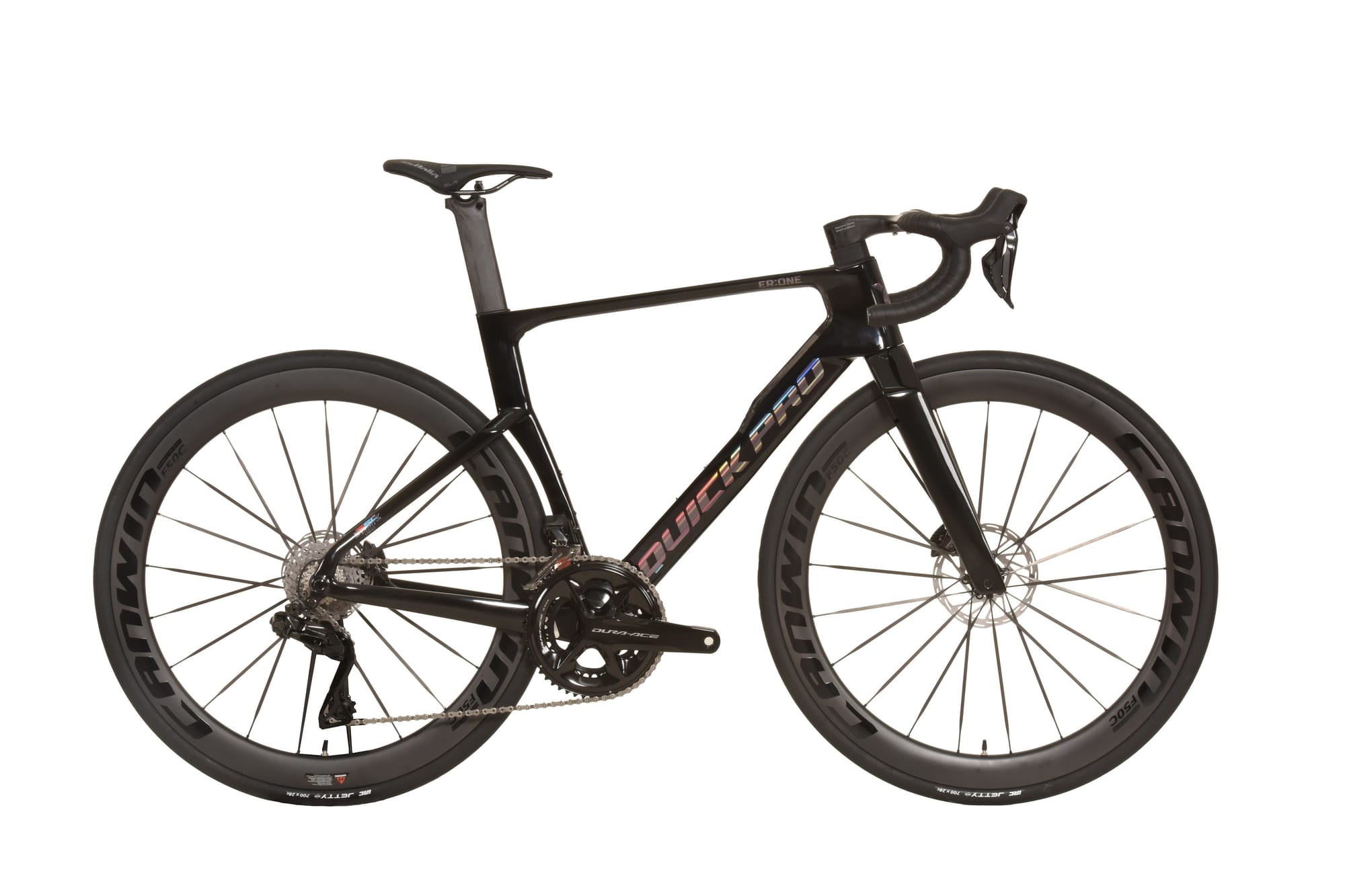

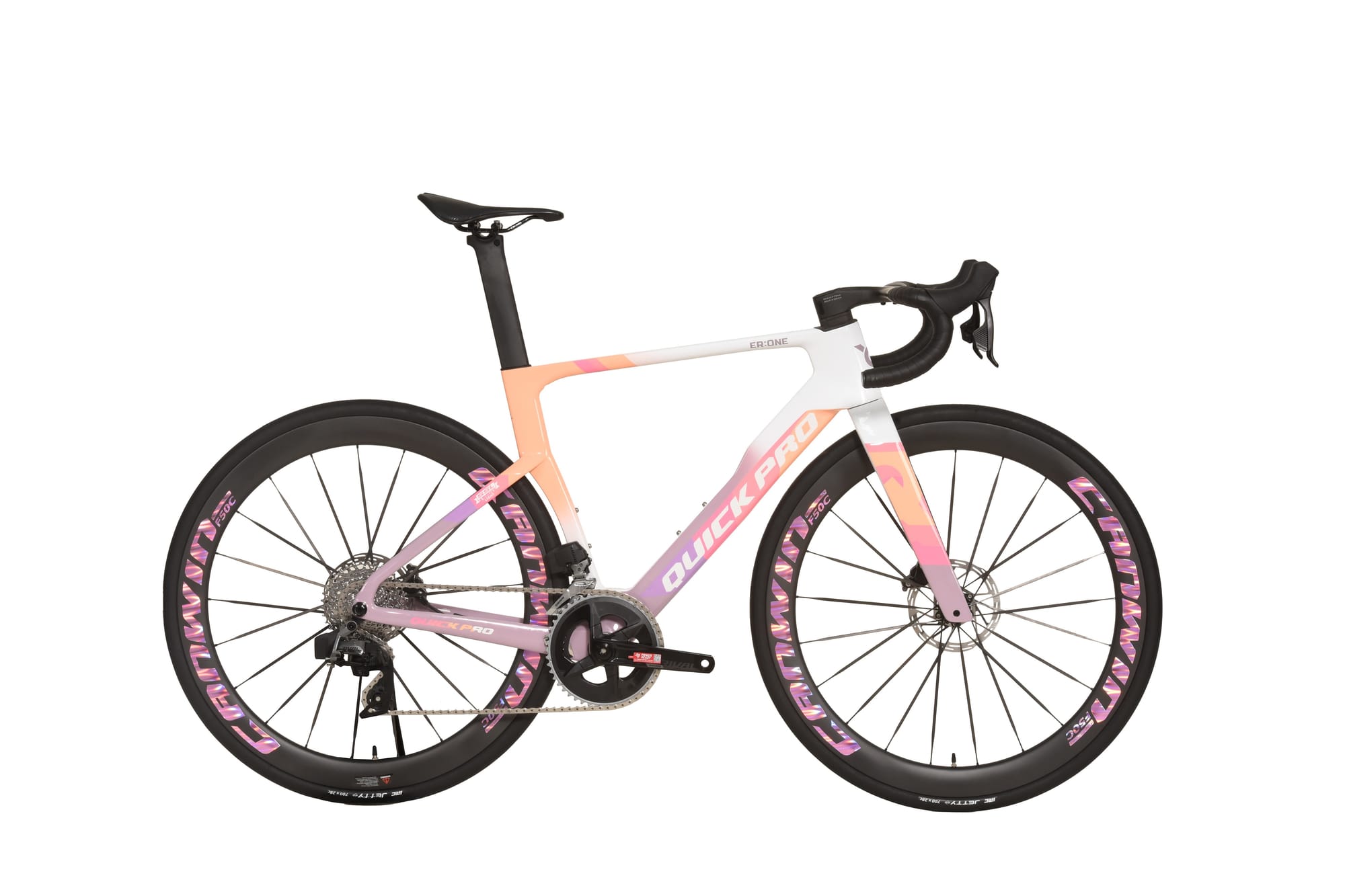

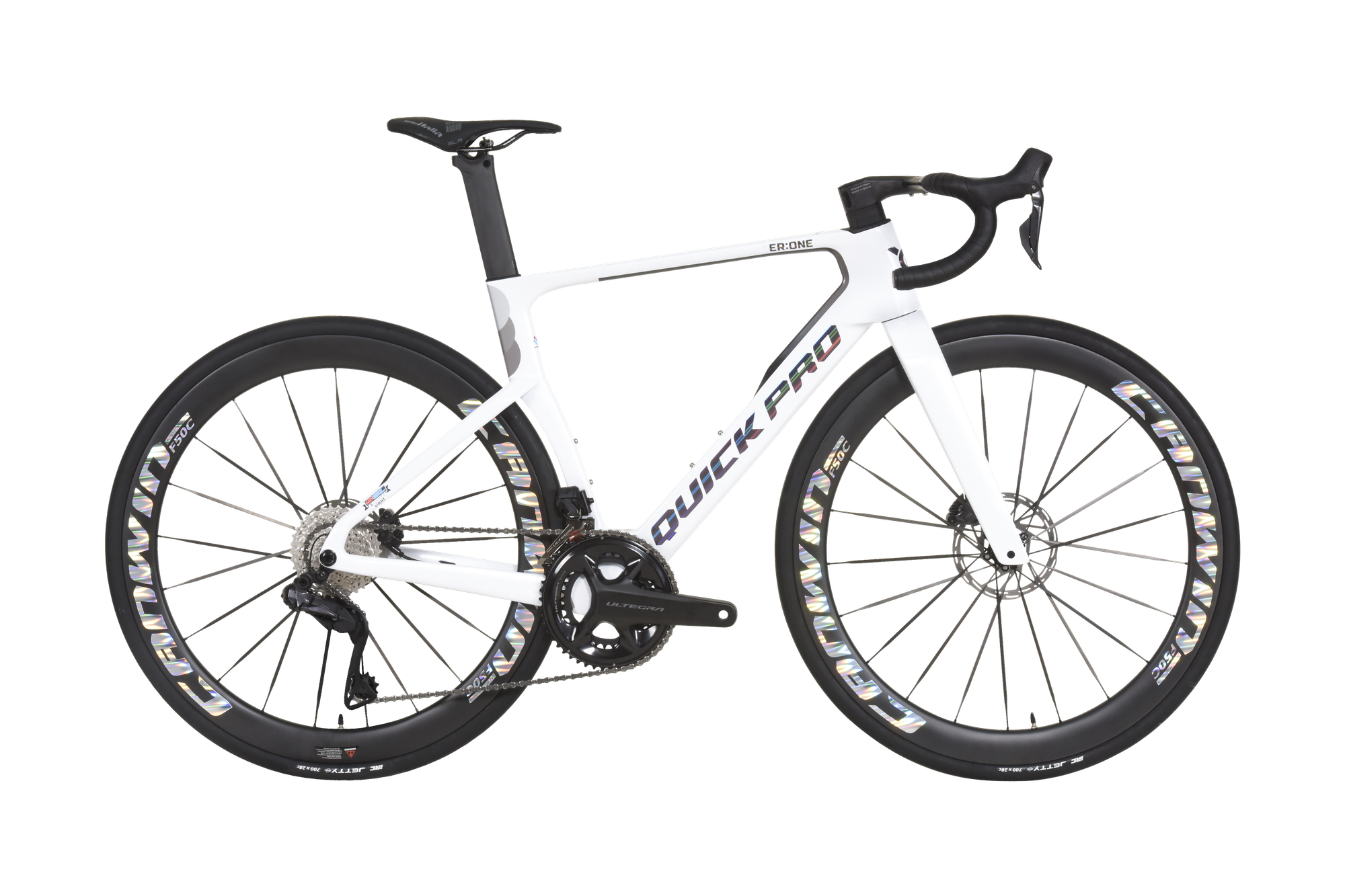

In the era of disc-brake and aerodynamics, we once again bring in road frame ER:ONE, which is evenlighter and more powerful.
RM9500
- Shipping:
Learn More
Specification
| ER:One | AR:One | |
| Frame set | Toray T1100 + M65, Carbon Mechanical or Electronic ready. Disc brake only. UCI approved. | |
| Seat Post | Aerosetpost, Carbon Setback: 0mm OR 20mm | |
| Handlebar | CANWIN Zephyr SSL Integrated Handlebar Toray T1100 + M65, Carbon -8 Degree | |
| BB Type | T47 External, 68mm | BSA, 68mm |
| Size | XS, S, M, L, XL | |
| Weight | Size M Frame: 840g Fork: 445g Seatpost: 130g Handlebar: 288g | Size S Frame: 695g Fork: 379g Seatpost: 128g Handlebar: 288g |
| Warranty | Frame & Fork = 5 years | |

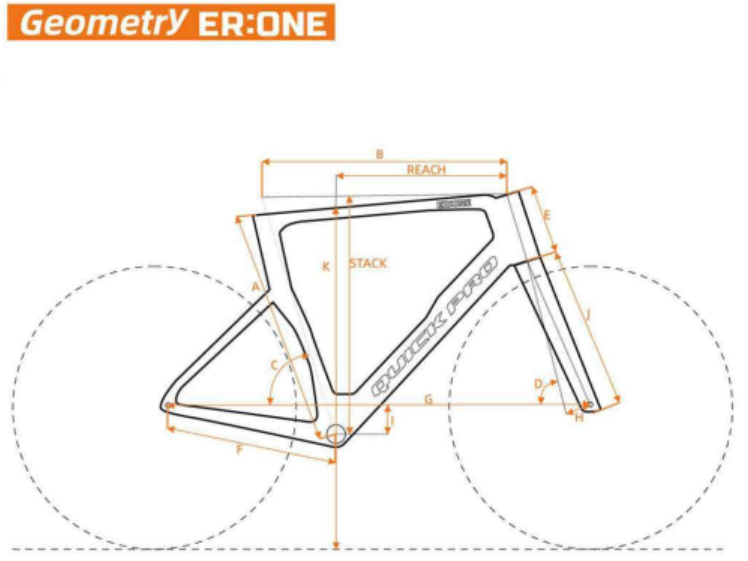

GEOMETRY & SIZING
A | XS | S | M | L | XL | |
B | Effective Top Tube | 515 | 525 | 540 | 558 | 575 |
C | Effective seat Tube Angle | 75 | 74.5 | 74 | 73.5 | 73.5 |
D | Head Tube Angle | 70 | 71 | 72 | 73 | 73 |
E | Head Tube Length | 105 | 118 | 132 | 148 | 165 |
F | Chainstay Length | 408 | 408 | 408 | 408 | 408 |
G | Wheelbase | 988 | 985 | 987 | 991 | 1008 |
H | Fork Rake | 45 | 45 | 45 | 45 | 45 |
I | BB Drop | 70 | 70 | 70 | 70 | 70 |
J | Fork Length | 373 | 373 | 373 | 373 | 373 |
K | Standover | 746 | 762 | 779 | 797 | 813 |
| Reach | 380 | 381 | 386 | 393 | 406 | |
| Stack | 505 | 201 | 538 | 556 | 572 |
Features

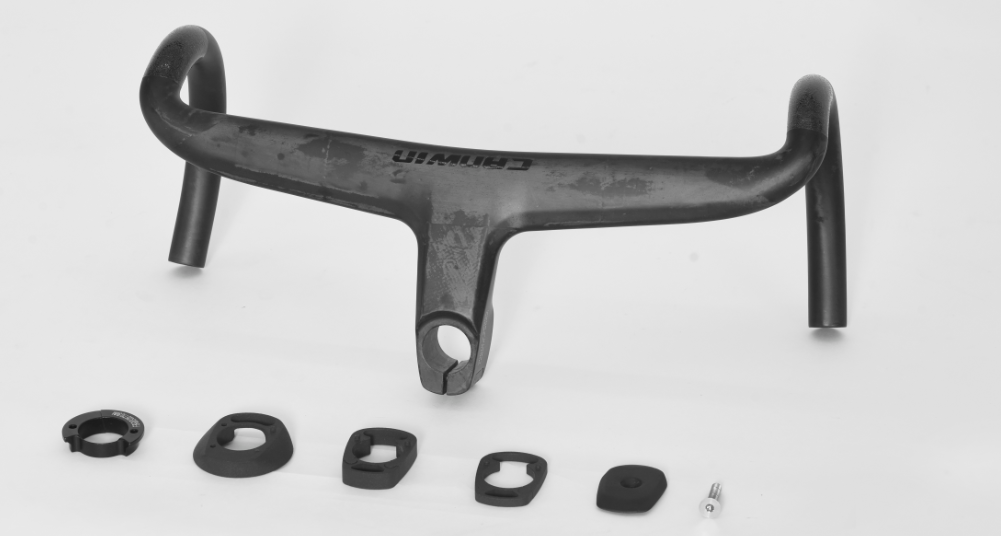

QUICK carbon fiber integrated wind-breaking handlebar.
Toray T1100 + M65 carbon,
Weight: SSL:288g ± 3%

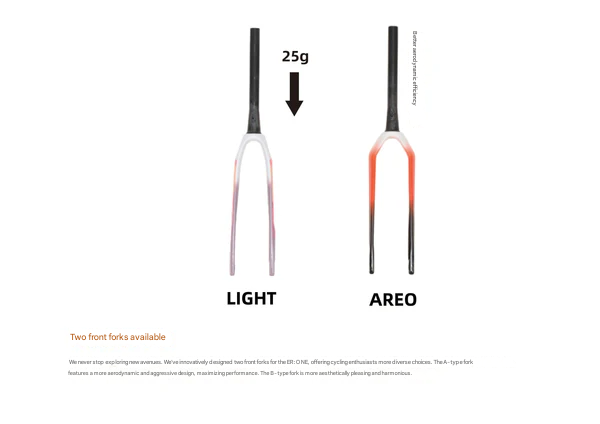

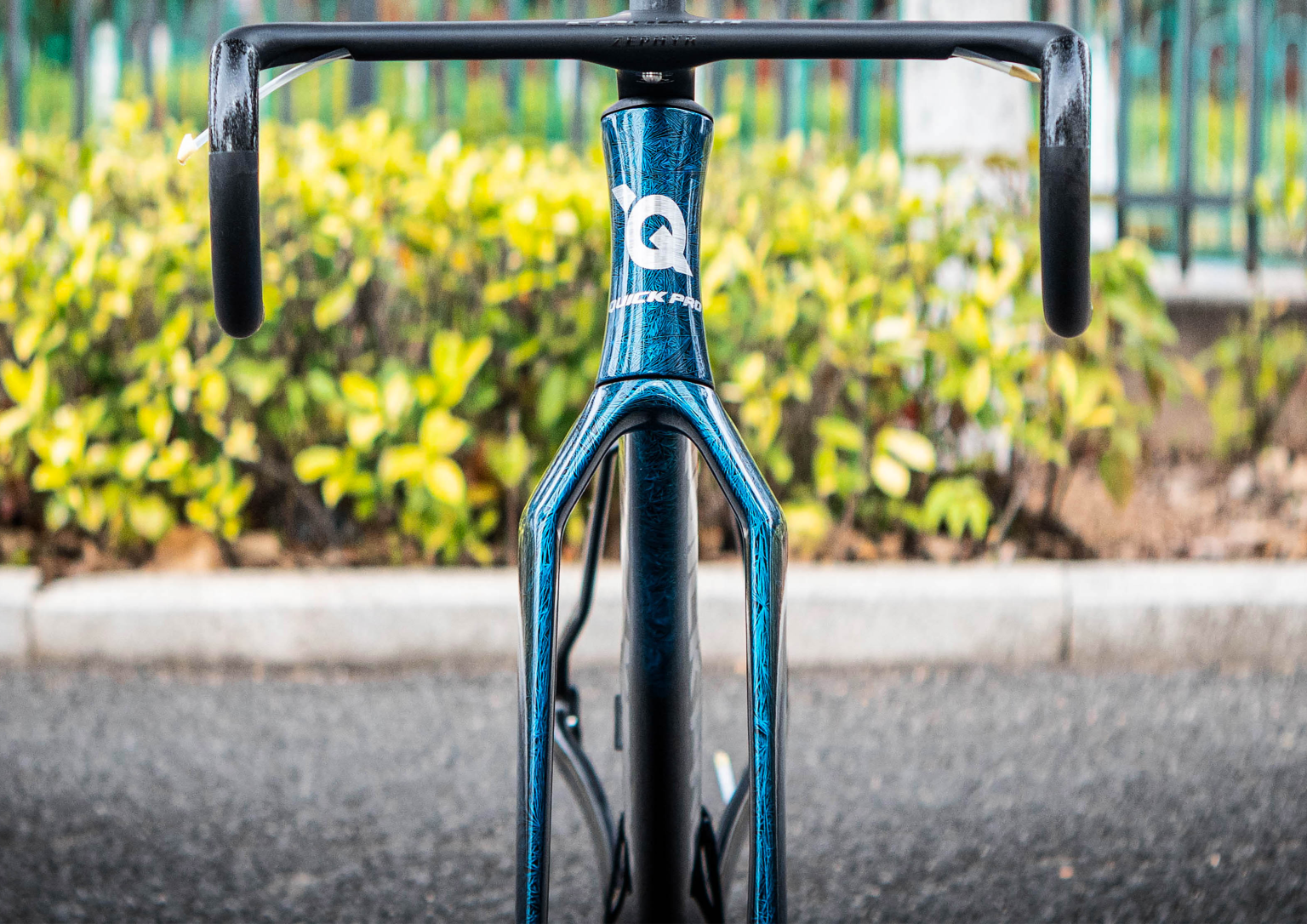

Wider Fork
The ER:ONE front fork features a wide-spacing design that is designed to keep the fork blades out of the turbulent air generated by the front wheel. Deep aerofoils perform best with laminar airflow, so this wide stance design gives the fork the best low-drag environment.
