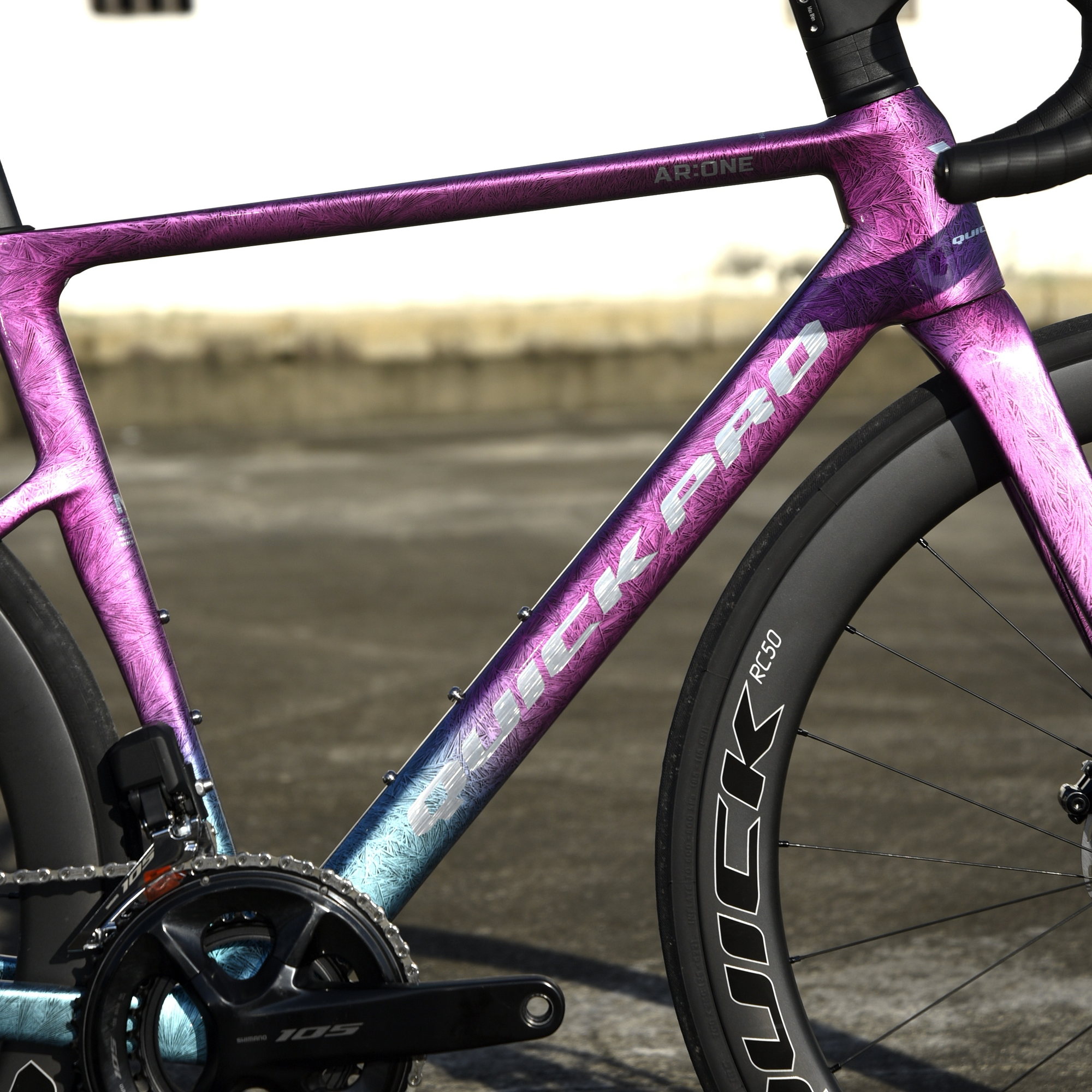

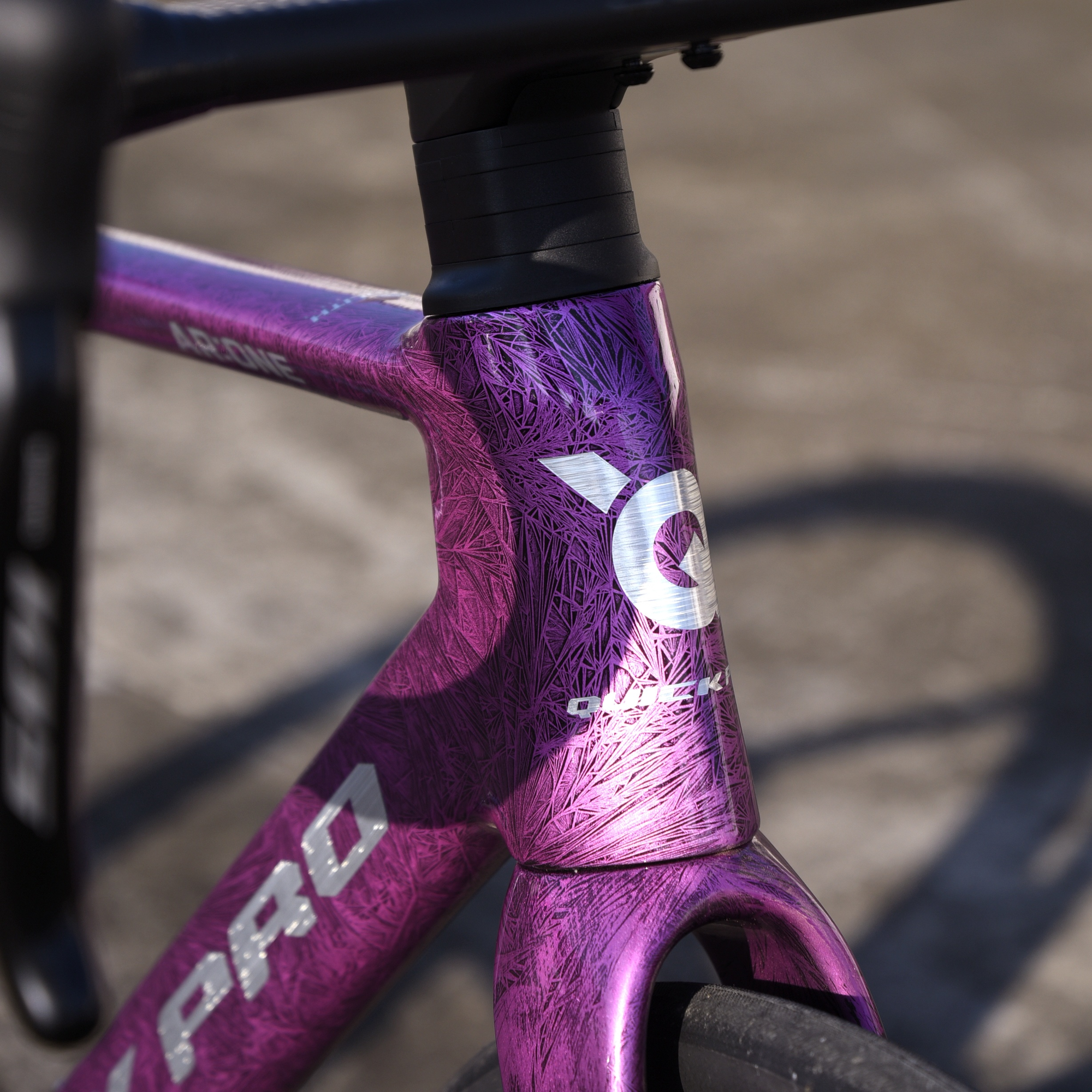

Through the advanced technology and application of leading materials, the head tube, BB and downtube of AR:ONE have got strong rigidity performance, which should contribute to a better power transmitin riding without energy loss.
RM9000
- Shipping:
Learn More
Specification
| ER:One | AR:One | |
| Frame set | Toray T1100 + M65, Carbon Mechanical or Electronic ready. Disc brake only. UCI approved. | |

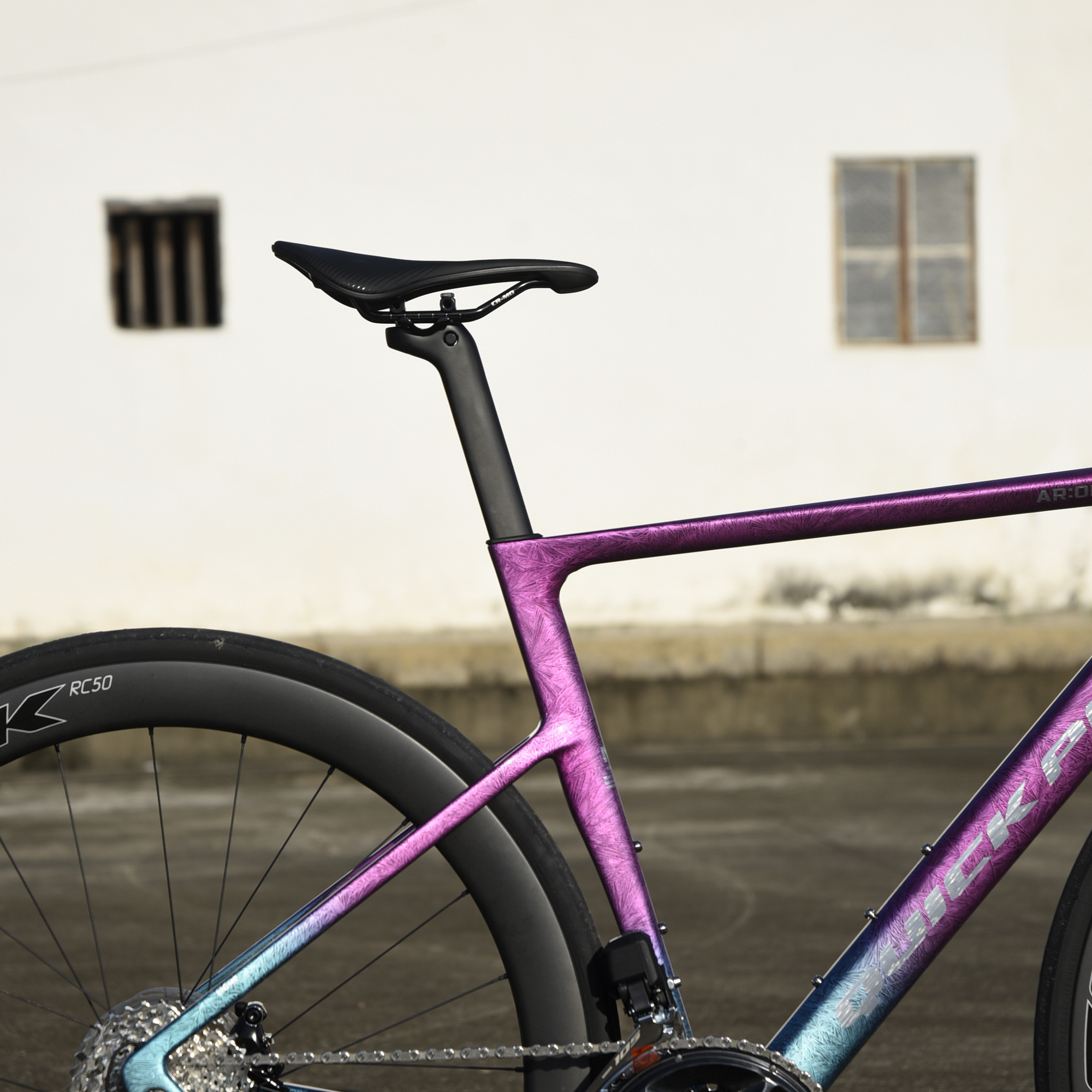

| Seat Post | Aerosetpost, Carbon Setback: 0mm OR 20mm | |
| Handlebar | CANWIN Zephyr SSL Integrated Handlebar Toray T1100 + M65, Carbon -8 Degree | |
| BB Type | T47 External, 68mm | BSA, 68mm |
| Size | XS, S, M, L, XL | |
| Weight | Size M Frame: 840g Fork: 445g Seatpost: 130g Handlebar: 288g | Size S Frame: 695g Fork: 379g Seatpost: 128g Handlebar: 288g |
| Warranty | Frame & Fork = 5 years | |

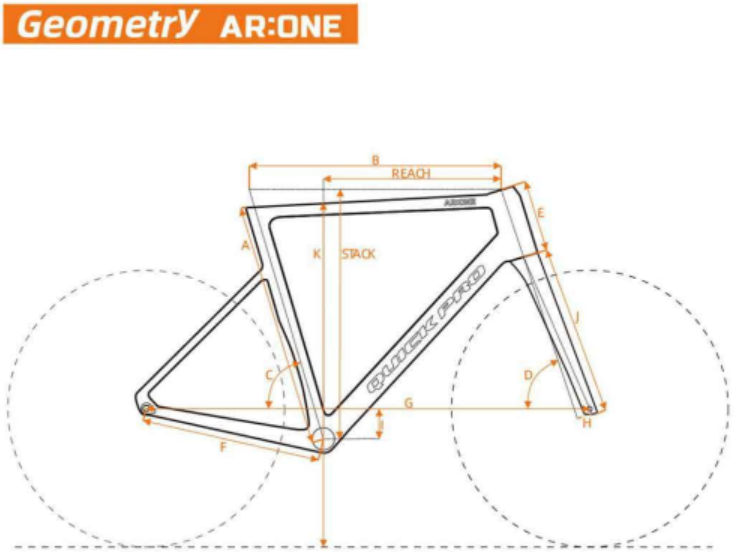

GEOMETRY & SIZING
A | XS | S | M | L | XL | |
B | Effective Top Tube | 510 | 525 | 540 | 555 | 570 |
C | Effective seat Tube Angle | 75 | 74.5 | 74 | 73.5 | 73.5 |
D | Head Tube Angle | 70 | 71 | 72 | 73 | 73 |
E | Head Tube Length | 105 | 115 | 130 | 145 | 160 |
F | Chainstay Length | 408 | 408 | 408 | 408 | 408 |
G | Wheelbase | 982 | 984.5 | 986 | 987 | 1002 |
H | Fork Rake | 45 | 45 | 45 | 45 | 45 |
I | BB Drop | 71.6 | 71.6 | 71.6 | 71.6 | 71.6 |
J | Fork Length | 370 | 370 | 370 | 370 | 370 |
K | Standover | 710.5 | 736 | 761.5 | 787 | 812.5 |
| Reach | 375.4 | 382.2 | 386.7 | 391.4 | 402 | |
| Stack | 503.9 | 516.7 | 534.6 | 552 | 566.6 |
Features

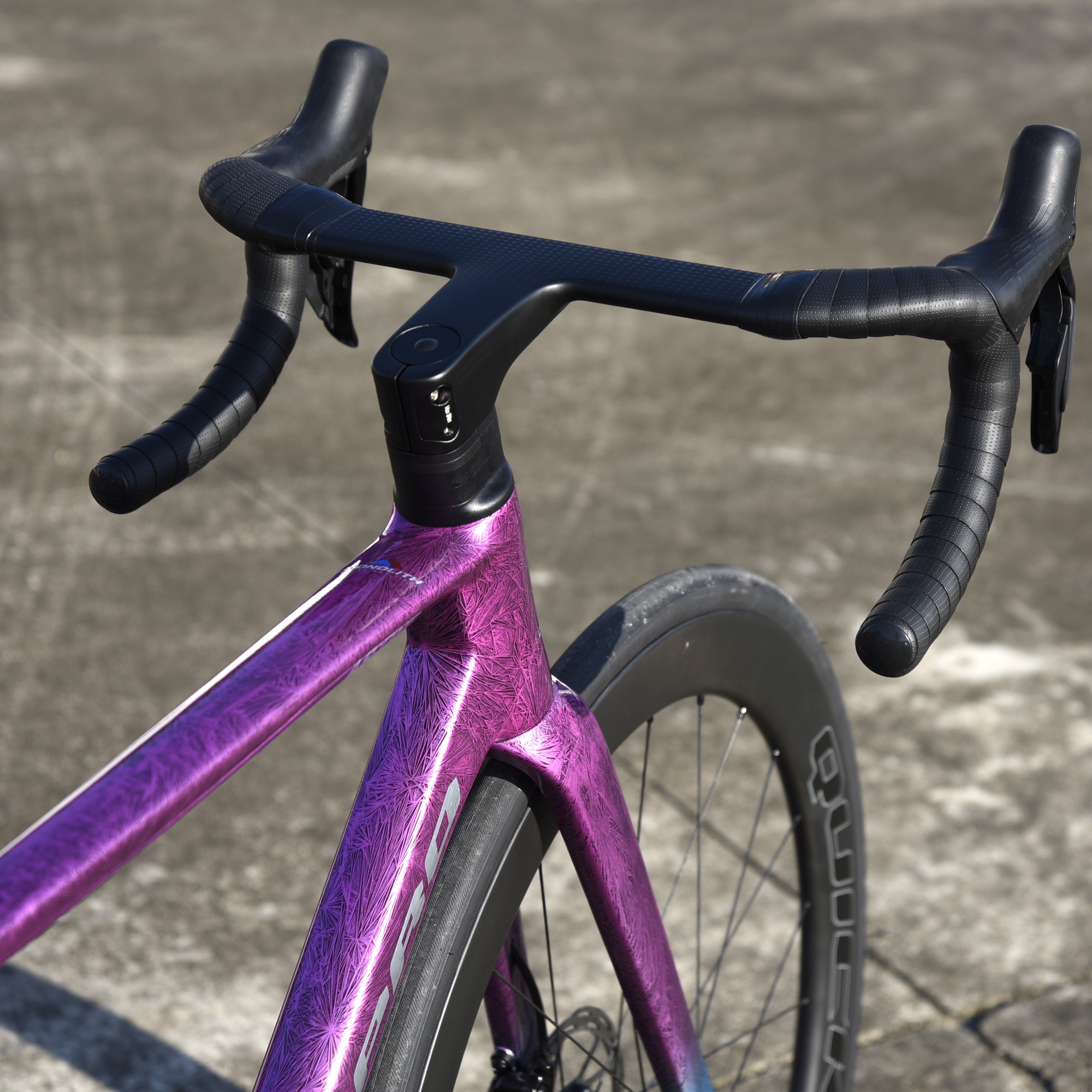

QUICK carbon fiber integrated wind-breaking handlebar.
Toray T1100 + M65 carbon,
Weight: SSL:288g ± 3%
