Features Japan Toray High Modulus Carbon Fiber T-1000 Frame Set Approved by UCI for professional racing use Shimano 105 Di2 R7170, 2x12 Speeds Shimano 105 Hydraulic Disc Brakes USA High-Tech Damping material “Innegra” into the frame set . Lifetime Warranty


RM9700

Spec: *

Learn More


MODELS & SPECIFICATIONS

ModelPro LegendPro TLPro UltraPro
Frame, ForkGusto Carbon T-1000 I.L.C, Thru Axle
DerailleurShimano 105 R7150 Di2 2x12
ShifterShimano 105 R7170 Di2 2x12
CranksetShimano 105 R7100 50-34T
CassetteShimano 105 R7100 11-30T or 11-34T
BrakeShimano 105 R7170 Hydraulic Disc Brake
WheelsetCampagnolo Shamal CarbonAttaque Carbon 45mm
Tubeless Ready
Vision Team TC30 Alloy
HandlebarAttaque Carbon Intergrated 7degree
XS/S - 390mm, 90mm
M - 400mm, 100mm
ML/L - 410mm, 110mm
XL - 420mm, 120mm
FSA Alloy
StemFSA Alloy
SeatpostAttaque CarbonFSA Alloy
SaddlePrologo - Dimension NDRSelle Italia - Model X
Weight



ColorGold
Lava Red
Champagne Gold
Galaxy Silver
Rose Gold (Pink)
Royal Blue


*THE SPECIFICATIONS, COLORS, AND AVAILABILITY OF THE PRODUCTS CAN BE SUBJECTS TO ALTER WITHOUT PRIOR NOTIFICATION



Features

Bottom Bracket Asymmetric Design

Enlarged BB design increases torsional strength and transverse stiffness to optimize steering and cycling efficiency.

Asymmetrical Seat Stay / Chain Stay Design

The diamond shape of the cross section increases the longitudinal/ transverse stiffness and riding comfort. The tear-drop shape design enlarged the cross section of chain stay, strengthen the right side power transmission and prevent the power loss from the distortion of the frame.



The cutting-edge carbon composite patented technology that combines INNEGRA/LATEX with the high-strength carbon fiber material Torayca T1000 from Japan

Currently, the world’s lightest high-performance carbon fiber is the advanced material INNEGRA from the United States. The GUSTO R&D team has exclusively developed their carbon composite patent technology to incorporate INNEGRA’s high modulus materials, the absorption properties of LATEX, and the highly rigid TORAYCA T1000 from japan to create a remarkably rigid, stable, and compliant GUSTO frame



TORAYCA T1000

GUSTO road racing bicycles use the top-grade high-strength carbon fiber material Torayca T1000 from Japan. This enhances the frames stiffness and strength ensuring minimal powerloss when pedaling


AURORA NANO PAINT

In addition to enhancing product scratch and stain resistance, ANP Aurora Nano Paint also increases product color brightness by 40% and extends the paint durability compared to conventional coatings.

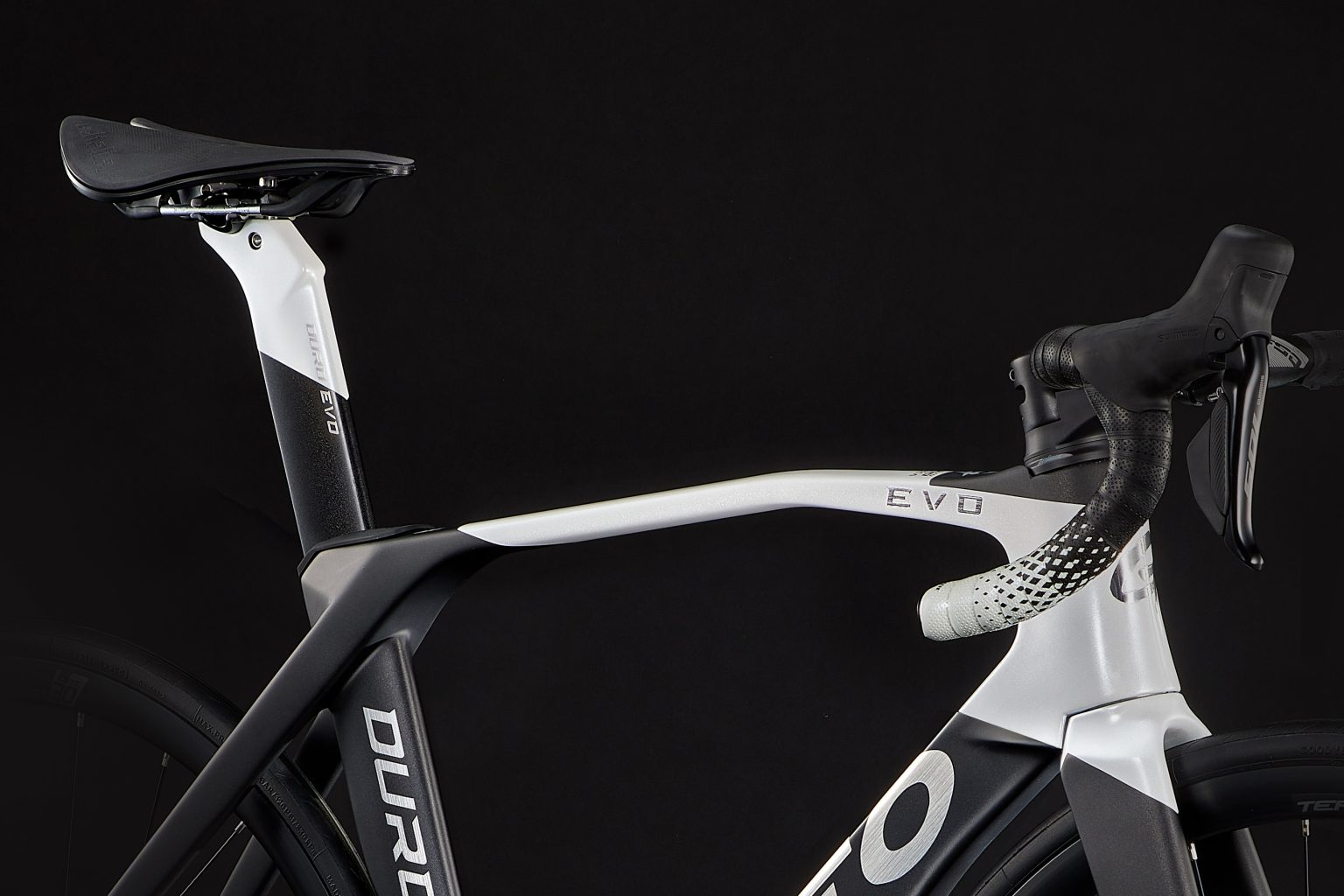

ATTAQUE INTEGRATED HANDLEBAR

The integration of the handlebar has become the mainstream design for racing bikes. Made of carbon fiber material, the integration of two parts reduces air resistance and improves light weighting and rigidity at the handlebar. It can also reduce vibration during riding.

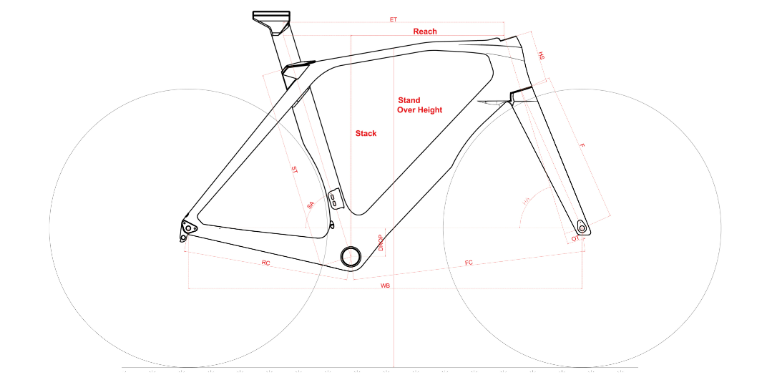

GEOMETRY & SIZING



XSSMMLLXL

Rider's Height (cm)152-164160-170166-176172-182178-188185-195
ASeat Tube Length440470490510520540
BSeat Tube Angle





CEffective seat Tube Angle7473.573737373
DHead Tube Length100111130143158178
EHead Tube Angle7272.573737373.5
FEffective Top Tube513528542552566580
GBB Height





HBB Offset707070707070
IChainstay Length406406406406406406
JWheelbase9539609679779911000
KFrame Reach364371376383391400
LFrame Stack511523543555570590
MStandover Height





Type
All Rounder
Frame
Carbon
Speed
Electric 2x12
Brake
Hydraulic Disc Brake
Wheel Size
700C
