Rolf Prima ARES 4 ES


BUILD IN USA 5 years warranty 1495g - 1645g 42mm Carbon Clincher Tubeless compatible


RM6390

Brake Type: *
  • Rim Brake
  • Disc Brake

Learn More


ARES4 ES Rim Brake

  • Weight: 1495g [635g/860g]
  • Spoke count: 16/20
  • Spoke type: Sapim CX Speed, bladed
  • Rim Depth: 42mm Carbon Clincher, tubeless compatible
  • Rim Width (max): 28.5mm, 19.5mm internal
  • Hubset: TdF3.0
  • Brake type: Rim brake
  • Freehub: Shimano/SRAM 10/11-speed
  • Tire size recommendation: 25mm to 62mm (2.4")
  • Includes: rim strips, valve extender, carbon specific brake pads, QR set and Rolf Prima's Certainty


Ares4 ES Disc Brake

  • Weight: 1645g [745g/900g]
  • Spoke count: 24/24
  • Spoke type: Sapim CX Speed, bladed
  • Rim Depth: 42mm Carbon Clincher, tubeless compatible
  • Rim Width (max): 28.5mm, 19.5mm internal
  • Hubset: XR3.0 Road
  • Brake type: Disc brake (Center Lock)
  • Freehub: Shimano/SRAM 10/11-speed
  • Tire size recommendation: 25mm to 62mm (2.4")
  • Includes: rim strips, valve extender and Rolf Prima's Certainty

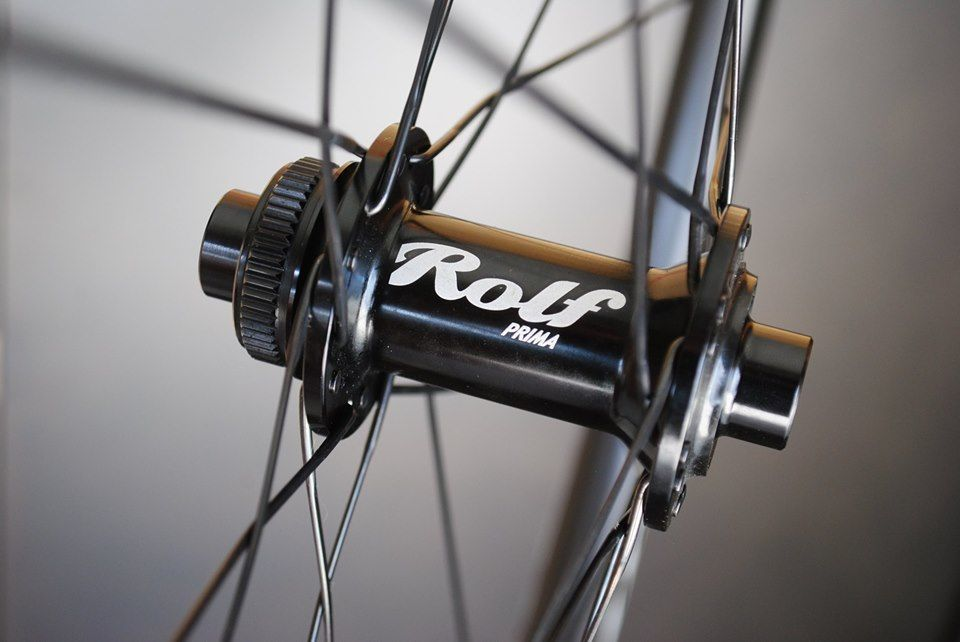

Hub

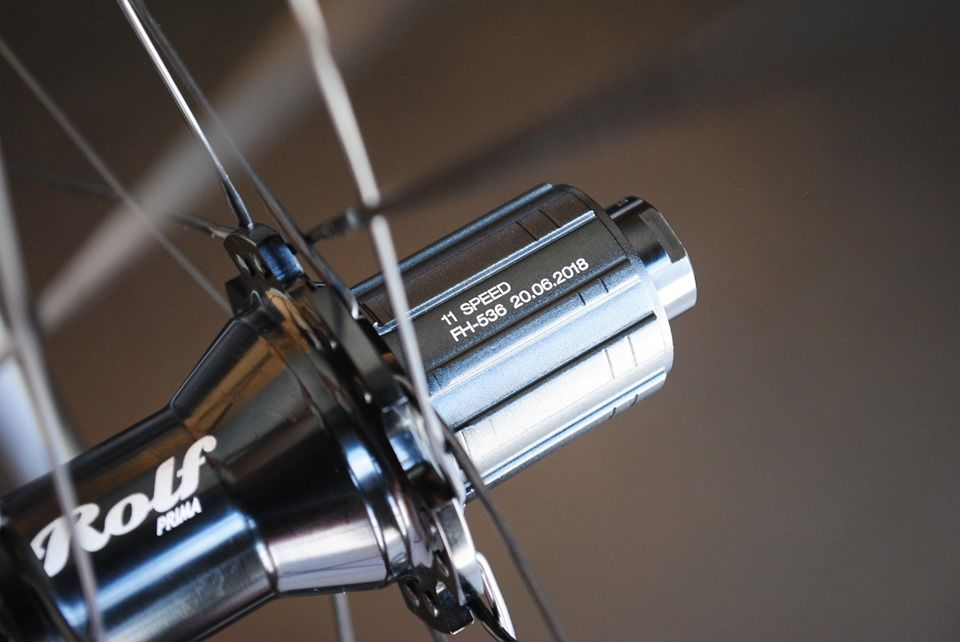

  • Forged aluminum freehub body with 3 sprung steel pawls, for efficient power transfer.
  • Patented Differential Flange Diameter in the rear effectively doubles the number of torque absorbing spokes, creating a more durable wheel.
  • FEA guided CNC machined flanges remove excess weight.
  • CNC machined hub shells and oversized alloy axles increase stiffness while trimming weight.
  • Sealed cartridge steel bearings
  • Designed in the USA


Hand build in USA, Eugene, Oregon.


DELTA RIM TECHNOLOGY™

Delta profile takes that cue using increased width and sidewall shaping to improve airflow and stability in straight on and crosswind situations. This wider rim is not just faster, but the additional tire support improves cornering and handling in all riding conditions.

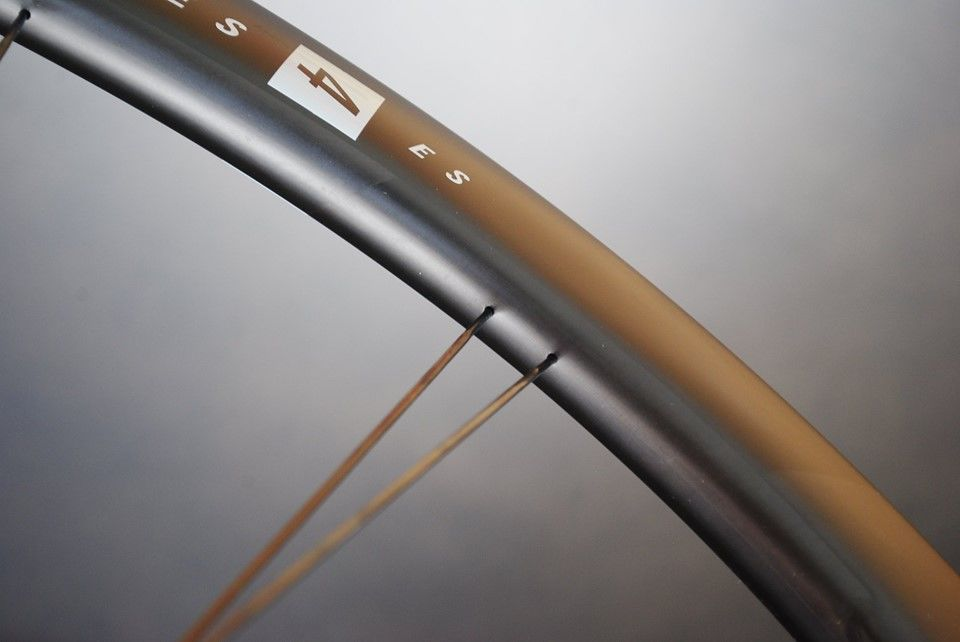

 INTERNAL NIPPLES

By using internal nipples Rolf Prima is able to reduce stresses on the nipple because the nipple is in compression. Building with internal nipples also decreases overall wind drag of the wheel, increasing aerodynamic benefits. Internal nipple technology is used on all Rolf Prima road and triathlon specific wheel models.


CNC machined hub shells and oversized alloy axles increase stiffness while trimming weight.Sealed cartridge steel bearings


Forged aluminum freehub body with 3 sprung steel pawls, for efficient power transfer.
