Polygon Strattos S5D 2022
All-rounder road bike built with ALX alloy frame and carbon fork, that defines a new way of experiencing the road
RM4999
- Brand: Polygon
- Shipping:
Learn More
SPECIFICATIONS
| Model | Strattos S5D | Strattos S5 |
| Frame | ALX All-Round Alloy, Thru Axle | ALX All-Round Alloy, QR |
| Fork | ACX All-Round Carbon, Taper, Thru Axle | ACX All-Round Carbon, Taper, QR |
| Derailleur | Shimano 105 R7000 | |
| Shifter | Shimano 105 R7020 | |
| Crankset | Shimano 105 R7000 52-36T | |
| Cassette | Shimano 105 R7000 11-30T | |

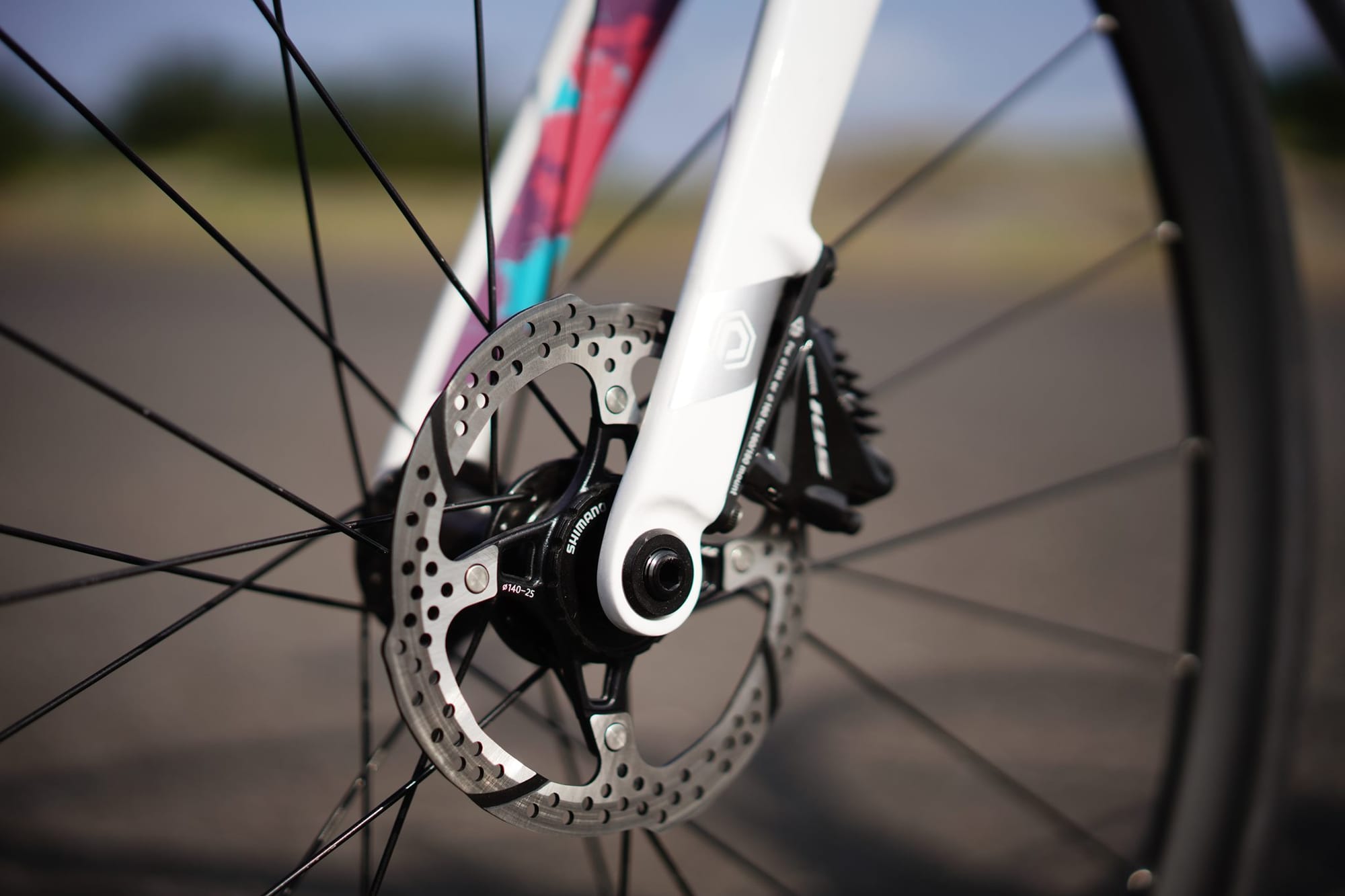

| Brake | Shimano 105 R7070 Hydraulic | |
| Wheelset | Entity XL3 Alloy, Novatec Hub, Tubeless Ready, | |
| Handlebar | Entity Sport Alloy | |
| Stem | Entity Sport Alloy | |
| Seatpost | Entity Sport 27.2mm, Off set 15mm | |
| Saddle | Entity | |
| Weight | ||
| Color | White Silver | White Mint |
*THE SPECIFICATIONS, COLORS, AND AVAILABILITY OF THE PRODUCTS CAN BE SUBJECTS TO ALTER WITHOUT PRIOR NOTIFICATION
SIZE GUIDE
XS : 154cm - 164cm
S : 162cm - 170cm
M : 168cm - 176m
L : 174cm - 181cm
XL : 180cm - 187cm
GEOMETRY
| XS | S | M | L | XL | ||
| A | Seat Tube Length | 450 | 470 | 500 | 520 | 550 |
| C | Effective seat Tube Angle | 75 | 74.5 | 74 | 73.5 | 73 |
| D | Head Tube Length | 90 | 105 | 130 | 155 | 185 |
| E | Head Tube Angle | 72 | 72.5 | 73 | 73 | 73 |
| F | Effective Top Tube | 515 | 525 | 540 | 555 | 570 |
| G | BB Height | 272 | 272 | 274.5 | 274.5 | 277 |
| H | BB Offset | 72.5 Drop | 72.5 Drop | 70 Drop | 70 Drop | 67.5 Drop |
| I | Chainstay Length | 415 | 415 | 415 | 415 | 415 |
| J | Wheelbase | 975 | 977 | 984 | 995 | 1005 |
| K | Frame Reach | 374.69 | 379.69 | 384.8 | 389.7 | 394.7 |
| L | Frame Stack | 518.54 | 533.48 | 548.8 | 563.79 | 579.17 |
| M | Standover Height | 722.25 | 744.47 | 762.86 | 784.67 | 806.2 |
Type
All Rounder
Frame
Alloy
Speed
Mechanic 2x11
Brake
Hydraulic Disc Brake
Wheel Size
700C
